LLM Agents · Structured Output · Python / jsonschema Differential

Tool calls that look right and silently aren't

LLMs emit structured tool calls that mostly parse, type-check, and validate - and still break the contract. This is my navigation shield's architecture pointed at the problem every agent framework has right now: a deterministic two-layer validator, an independent oracle, and the finding that the failures live above the schema.

View on GitHub Read the plain-language guide (PDF) Jump to results

25,000/25,000

fuzzed structural verdicts in agreement with the pinned jsonschema oracle

on both load-bearing cells - validator disagreements and invalid-marked-valid - CI-enforced on both tiers

7 · 5

schema-valid contract violations by qwen2.5-7B and llama-3.3-70B on the same 40 tasks (0 schema breaks by either)

The two layers

The structural layer - does the call parse, name a real tool, satisfy its JSON Schema? - is a standard-library checker with zero runtime dependencies, differentially tested against the mature jsonschema package, pinned exactly. On every structural verdict, every committed and fuzzed case, both checkers run and must agree; a disagreement is a bug in one of them, surfaced, never smoothed. The tests assert the oracle's sharp edges by name: bool is not a number, 1.0 is a valid integer, True is not a member of enum [1].

The semantic layer carries the contract rules a schema does not: referential integrity against live catalogs, mutually exclusive parameters, parameters required together or in order, conditionals. It is declared as data beside each tool - and it is where the real failures concentrated.

Flowchart: LLM output is parsed, checked against the tool catalog, run through the structural layer twice (hand-written checker and jsonschema oracle, with a disagreement cell that must stay empty), then the semantic contract layer; buckets are parse failure, unknown tool, schema violation, semantic violation, and valid — The pre-registered taxonomy as a pipeline. The structural layer runs twice by design - the hand-written checker beside the independent oracle - and their disagreement cell is a load-bearing zero that fails CI. Bucket counts live in the results, never in the diagram.

The results

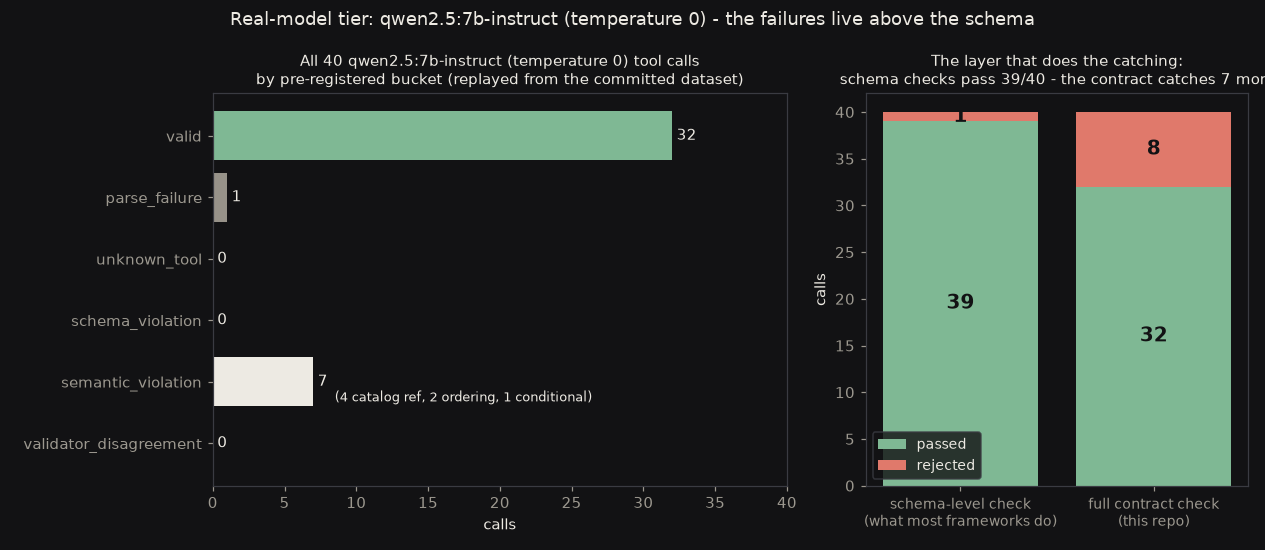

Left: all 40 qwen tool calls by bucket - 32 valid, 1 parse failure, 0 unknown tools, 0 schema violations, 7 semantic violations. Right: a schema-level check passes 39 of 40 calls while the full contract passes 32 — Forty natural robot-operations tasks, one call each from qwen2.5:7b-instruct at temperature 0, raw responses committed and replayed deterministically in CI. The model never hallucinated a tool and never broke a schema - and still produced seven contract violations: nonexistent entities transcribed faithfully into well-typed calls, copied contradictions in time windows and geofences, a dangling conditional.

The headline is the right panel: a schema-level check - what most agent frameworks do - passes 39 of 40 of this model's calls. The contract passes 32. Everything substantive lived above the schema, which is the thesis of the repository, demonstrated on committed data.

The thesis then survived its first replication. The same forty tasks put to llama-3.3-70b-versatile (temperature 0, hosted) - ten times the parameters - produced zero schema violations and five contract violations: the same three failure families as the 7B model (nonexistent entities transcribed faithfully, a delivery scheduled to end before it starts, a zone rule with no zone). A schema-level check again passes 39 of 40. Strangest detail: both models' single parse failure is the same task - asked to rotate a camera no tool controls, qwen emitted an empty object and llama wrote a prose refusal naming the missing capability. Neither invented a tool.

And the honest boundary, with committed examples: the model also silently substituted impossible requests into contract-valid calls - "warehouse 3" became an existing waypoint, "5 m/s" became 0.5, "turn the robot off" became a status report. Those land in valid, because they satisfy the contract. Whether a call matches the user's intent is a task-appropriateness axis this validator pre-declared as a non-goal - those cases are why the axes exist separately, and why merging them into one "valid" score would be a lie.

Backing it all: a 262-case constructed tier with every label confirmed by the oracle before it counts, dataset regeneration diff-checked in CI, and the 25,000-pair seeded differential - deterministic on purpose, because an asserted count must not drift. Facts about two models - a 7B and a 70B - each at one temperature on the same n=40, reported per model and never averaged, worded that way everywhere.
